Output voltage
400 V AC / 50 Hz
Output current
16 A
Peak Power
54 kW
Weight
5.1 kg
Trusted by
Instagrid LINK MAX

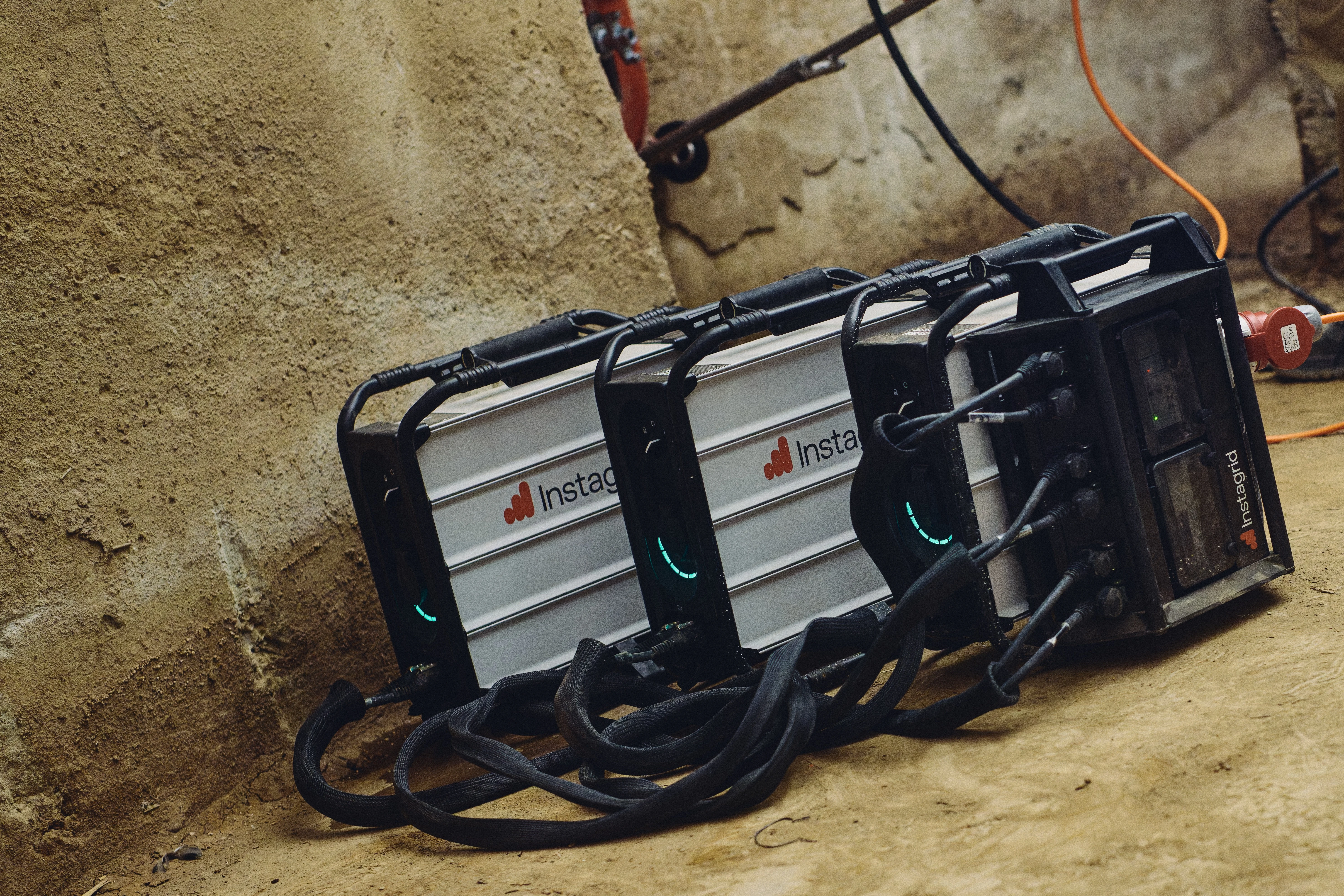

Combine the power of three compatible Instagrid ONE units to create one, 400 V, 3-phase output.
Key Benefits
Exceptional portability
Combined with Instagrid ONE, Instagrid LINK MAX is the world’s most portable 400 V power solution. Each part of the solution can be carried individually by hand without additional machinery.
Unmatched peak power
The Instagrid LINK MAX solution provides peak power of up to 54 kW, enabling you to run highly demanding equipment effortlessly.
Simple plug and play experience
Arrive on site, plug in the cables and you're ready to go!
Power your world: Construction
Setting up a 400 V power source on your jobsite has never been easier.
Exceptional flexibility
Bring the power source wherever you need instead of running extension cords across your jobsite from the heavy generator that has to stay in your van.
Unmatched reliability
No more downtimes due to failures or maintenance as the Instagrid LINK MAX solution works anytime, anywhere, instantly and reliably.
Safer working environment
Eliminates the noise and air pollution of generators and benefit your team and the surrounding environment.
Applications
Concrete chainsaw 6,500 W
~ 8 m cutting length in
concrete
↕ 150 mm
Applications
Arc welding machine 8,500 W
Up to 29 electrodes
Ø 5 mm
at 235 A
Applications
Ringsaw 6,500 W
~ 11 m cutting length in
concrete
↕ 180 mm
Applications
Diamond core drill 7,500 W
~ 33 holes in concrete
Ø 300 mm core drill bit
↕ 200 mm
Applications
Large submersible pump 5,300 W
~ 2,400 l/min
~ 192,200 l
80 min
Applications
Concrete chainsaw 6,500 W
~ 8 m cutting length in
concrete
↕ 150 mm
Applications
Arc welding machine 8,500 W
Up to 29 electrodes
Ø 5 mm
at 235 A
Power your world: Film, Media & Events
Setting up a 400 V power source on your event or filmset has never been easier.
Exceptional flexibility
Bring your power source wherever you need it instead of running extension cords across your set or event from a stationary heavy generator.
Unmatched reliability
No more downtimes due to failures or maintenance as the Instagrid LINK MAX solution works anytime, anywhere, instantly and reliably.
Safer working environment
Eliminates the noise and air pollution of generators, benefiting your workers, your customers and the surrounding environment.
Applications
Chainhoist
Stay in control of your build. Power chain hoists and set up stage roofs, PA towers, and structures whenever you need to.
Applications
Chainhoist
Stay in control of your build. Power chain hoists and set up stage roofs, PA towers, and structures whenever you need to.
Applications
Chainhoist
Stay in control of your build. Power chain hoists and set up stage roofs, PA towers, and structures whenever you need to.
